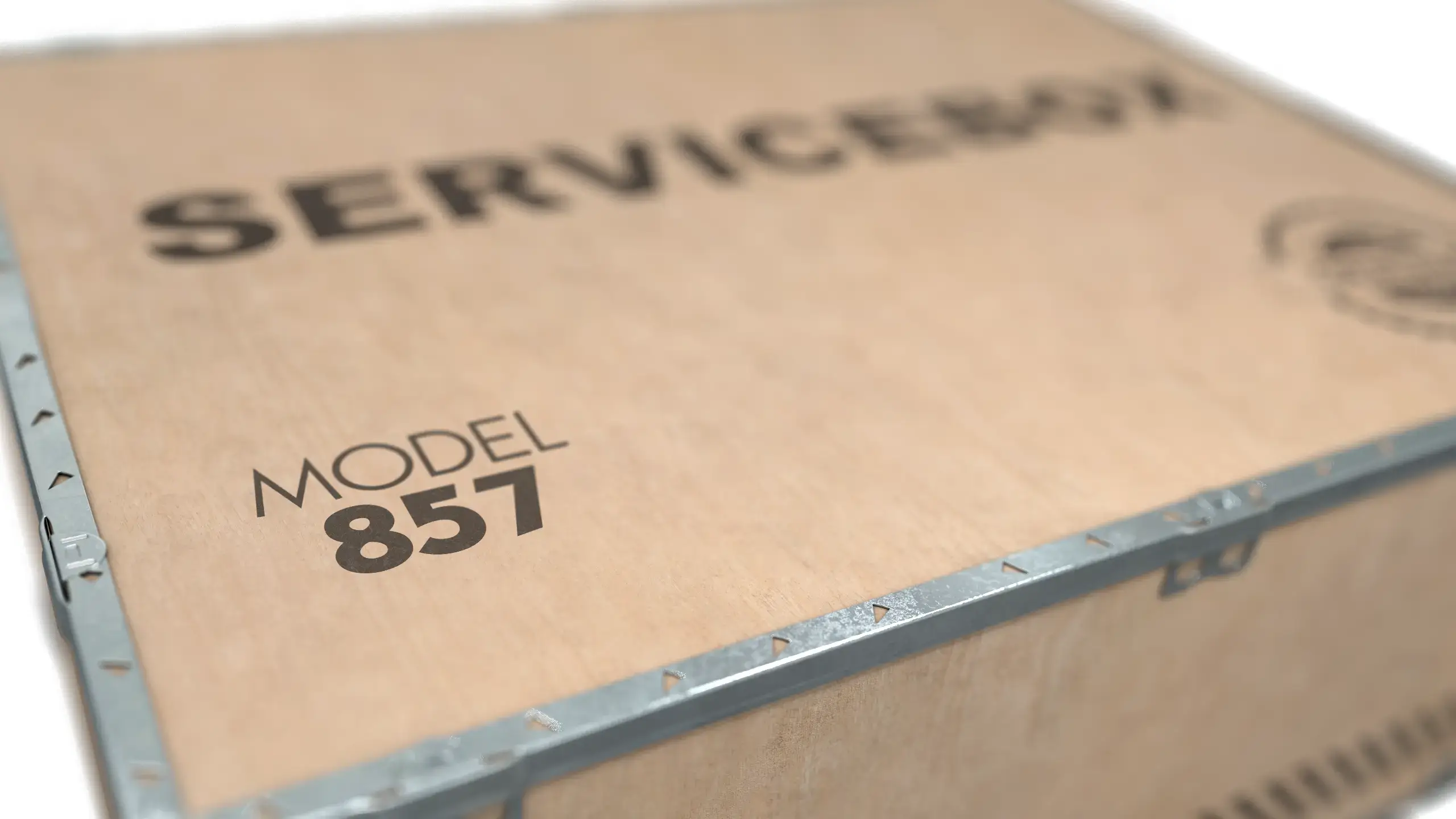

Servicebox 857

Servicebox for spreader model 857

Product information

Our service boxes contain all the genuine parts we consider needed to be replaced at service. Servicebox 857 is valid for all standard models delivered from year 2010.

Weight & Dimensions

Box weight	130 kg
Box dimensions	80x60x45 cm

Twistlock Assembly

4x Twistlock kit
8x Seal ring
8x O-ring
4x Ball joint
4x Seated pin
4x Nut
4x Compression spring
4x Compression spring
4x Tie rod
4x Indicator arm

Wear Pads & Shims

20x Wear pad - Mainframe/Extension beam
4x Wear pad - Mainframe
4x Wear pad - Extension cylinder
8x Wear pad - Carriage

Flex Track Chain Assembly

2x Flex track chain
4x Bracket
16x Screw
4x Hydraulic hose assy
2x Cable assy

Leg Parts

8x Buffer (on fold/clamp cylinder)
4x Nut

Foot Parts

4x Nut
4x Bushing
4x Shims
4x Roll pin

Additional Items

6x Proximity switch
2x Proximity switch (foot)
1x Seal kit - Sideshift cylinder
1x Seal kit - Extension cylinder
1x Seal kit - Twistlock cylinder
1x Seal kit - Fold/clamp cylinder
1x Seal kit - Sidetilt cylinder

DISCLAIMER
All specifications are subject to change without notice. A list of options enables you to adapt the product more precisely to your needs and further information is available on request.
