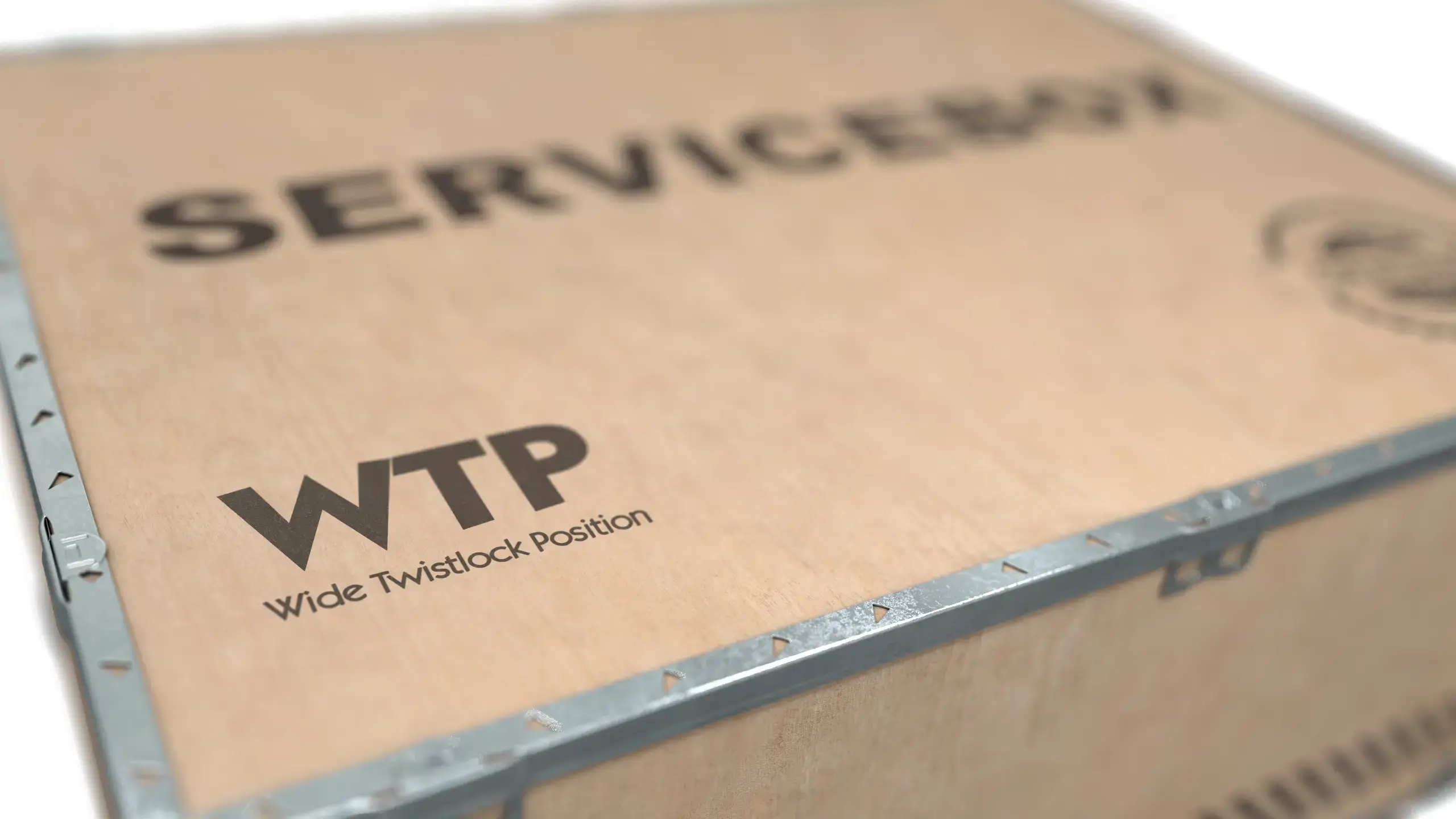

Servicebox 8210 WTP
Servicebox for spreader model 8210 WTP
Product information
Our serviceboxes contain all the genuine parts we consider needed to be replaced at service. Servicebox 8210 WTP is valid for all standard models.
Weight & Dimensions
| Box weight | 110kg |
|---|---|
| Box dimensions | 80x60x45 cm |
Twistlock Assembly
- 2x Twistlock kit
- 2x Twistlock kit
- 4x Seated pin
- 4x Seated pin ISO/WTP
- 4x Nut (on indication arm)
- 4x Nut (on seated pin ISO/WTP)
- 4x Washer (on seated pin ISO/WTP)
- 4x Bracket
- 4x Indicator arm
- 4x Spring (on tie rod)
- 4x Spring (on indicator arm)
- 4x Spring (on seated pin ISO/WTP)
- 4x Tie rod
Wear Pads
- 20x Wear pad - Mainframe/Extension beam (18x for 45ft spreader)
- 4x Wear pad - Mainframe
- 2x Wear pad - Mainframe/Extension beam (for 45ft spreader)
- 8x Wear pad/shims - WTP beam
- 4x Wear pad - Extension cylinder
- 2x Wear pad - Length indication
Buffers
- 4x Buffer - Flipper arm
Filters
- 1x Filter kit
Additional Items
- 4x Proximity switch
- 1x Seal kit - Flipper cylinder
- 1x Seal kit - Extension cylinder
- 1x Seal kit - Twistlock cylinder
- 1x Seal kit - WTP cylinder
DISCLAIMER
All specifications are subject to change without notice. A list of options enables you to adapt the product more precisely to your needs and further information is available on request.
