817 INNOVATION

Servicebox for spreader model 817 INNOVATION

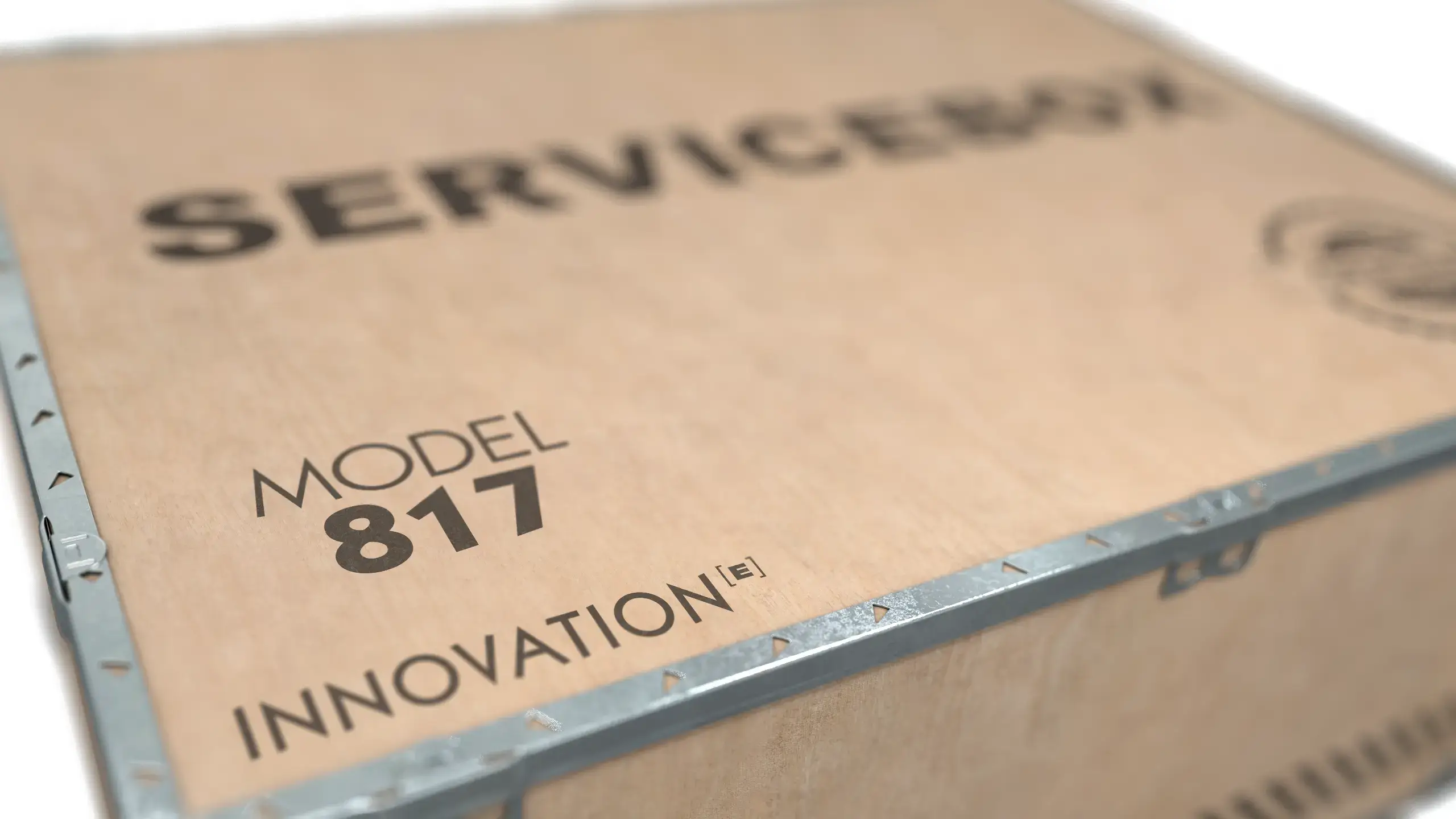

817 INNOVATION Servicebox

Our service boxes contain all the genuine parts we consider needed to be replaced at service. Servicebox 817 INNOVATION is valid for all standard model 817 INN. spreaders.

Weight & Dimensions

Box weight110kg
Box dimensions80x60x43 cm

Twistlock Assembly

  • 4x Twistlock kit
  • 4x Seated pin
  • 4x Nut
  • 4x Bracket
  • 4x Indicator arm
  • 4x Tie rod
  • 4x Compression spring
  • 4x Compression spring

Wear Pads & Shims

  • 12x Wear pad - Mainframe
  • 4x Wear pad - Mainframe lower
  • 4x Wear pad - Extension beam lower
  • 4x Wear pad - Extension beam upper
  • 2x Wear pad - Extension beam lower
  • 2x Wear pad - Extension beam lower
  • 4x Wear pad - Rotator
  • 4x Wear pad - Rotator
  • 4x Shims - Rotator

Flex Track Chain Assembly

  • 2x Flex track chain
  • 4x Hydraulic hose assy.
  • 2x Cable assy.
  • 2x Cable assy. (work lights)

DISCLAIMER
All specifications are subject to change without notice. A list of options enables you to adapt the product more precisely to your needs and further information is available on request.
