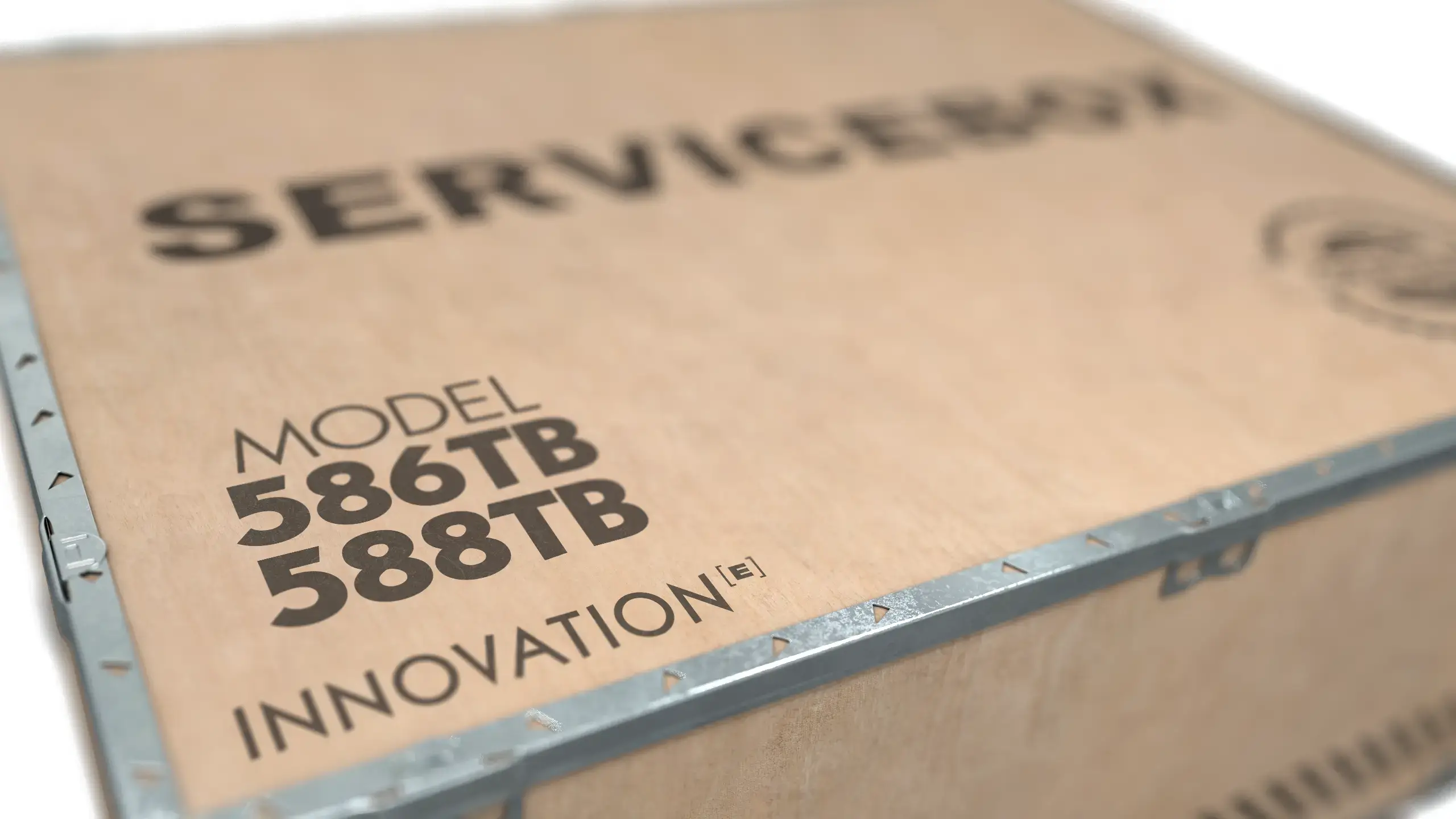

Servicebox 586TB/588TB INNOVATION

Servicebox for spreader models 586TB/588TB INNOVATION

Product information

Our service boxes contain all the genuine parts we consider needed to be replaced at service. Servicebox 586TB/588TB INNOVATION is valid for all standard models.

Weight & Dimensions

Box weight80 kg
Box dimensions80x60x45 cm

Twistlock Assembly

  • 1x Twistlock kit (Left)
  • 1x Twistlock kit (Right)
  • 2x Seated pin
  • 2x Nut*
  • 2x Compression spring*
  • 2x Compression spring*
  • 2x Tie rod*
  • 2x Seated bracket*
  • 2x Indicator*

Wear Pads & Shims

  • 4x Wear pad - Endbeam
  • 30x Wear pad - Mainframe
  • 6x Wear pad - Carriage
  • 6x Shims - Mainframe
  • 2x Shims 1 mm - Carriage
  • 2x Shims 2 mm - Carriage

Flex Track Chain

  • 2x Flex track chain - Extension
  • 1x Flex track chain - Carriage

Back up Parts

  • 2x Proximity switch
  • 1x Seal kit - Sideshift cylinder
  • 1x Seal kit - Extension cylinder
  • 1x Seal kit - Twistlock cylinder
  • 1x Seal kit - Electro valve

PPS (option)

  • 6x Wear pads (carriage)
  • 2x Shims 1mm (carriage)
  • 2x Shims 2mm (carriage)
  • 1x Seal kit - Tilt cylinder

DISCLAIMER
All specifications are subject to change without notice. A list of options enables you to adapt the product more precisely to your needs and further information is available on request.
