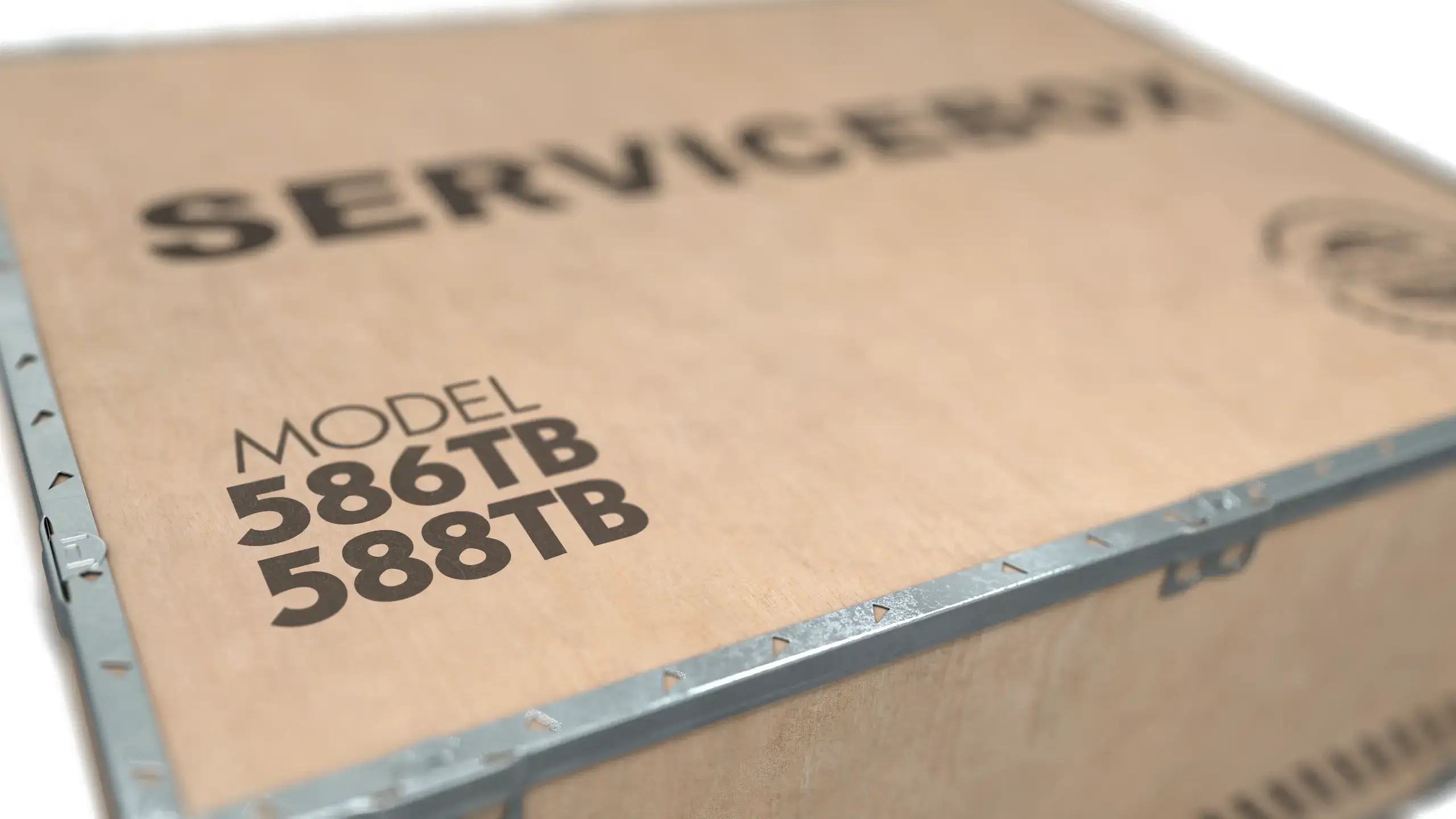

Servicebox 586TB/588TB

Servicebox for spreader models 586TB/588TB

Product information

Our serviceboxes contain all the genuine parts we consider needed to be replaced at service. Servicebox 588TB is valid for all standard models delivered from the launch in year 2010.

Weight & Dimensions

Box weight (MPS)	80 kg
Box weight (PPS)	90 kg
Box dimensions	80x60x45 cm

Twistlock Assembly

2x Twistlock kit
2x Seated pin
2x Nut*
2x Compression spring*
2x Compression spring*
2x Tie rod*
2x Seated bracket*

Wear Pads & Shims

8x Wear pad - Endbeam
24x Wear pad - Mainframe
6x Wear pad - Carriage
10x Shims - Mainframe
4x Shims - Endbeam

Flex Track Chain

2x Flex track chain

Additional Items

2x Proximity switch
1x Seal kit - Sideshift cylinder
1x Seal kit - Extension cylinder
1x Seal kit - Twistlock cylinder

PPS (option)

2x Wear pads (frame)
2x Shims 1 mm (frame)
2x Shims 2 mm (frame)
2x Wear pads (carriage)
2x Shims 1 mm (carriage)
2x Shims 2 mm (carriage)
6x Bolts (carriage)
6x Lock washer (carriage)
1x Seal kit - Tilt cylinder

DISCLAIMER
All specifications are subject to change without notice. A list of options enables you to adapt the product more precisely to your needs and further information is available on request.
