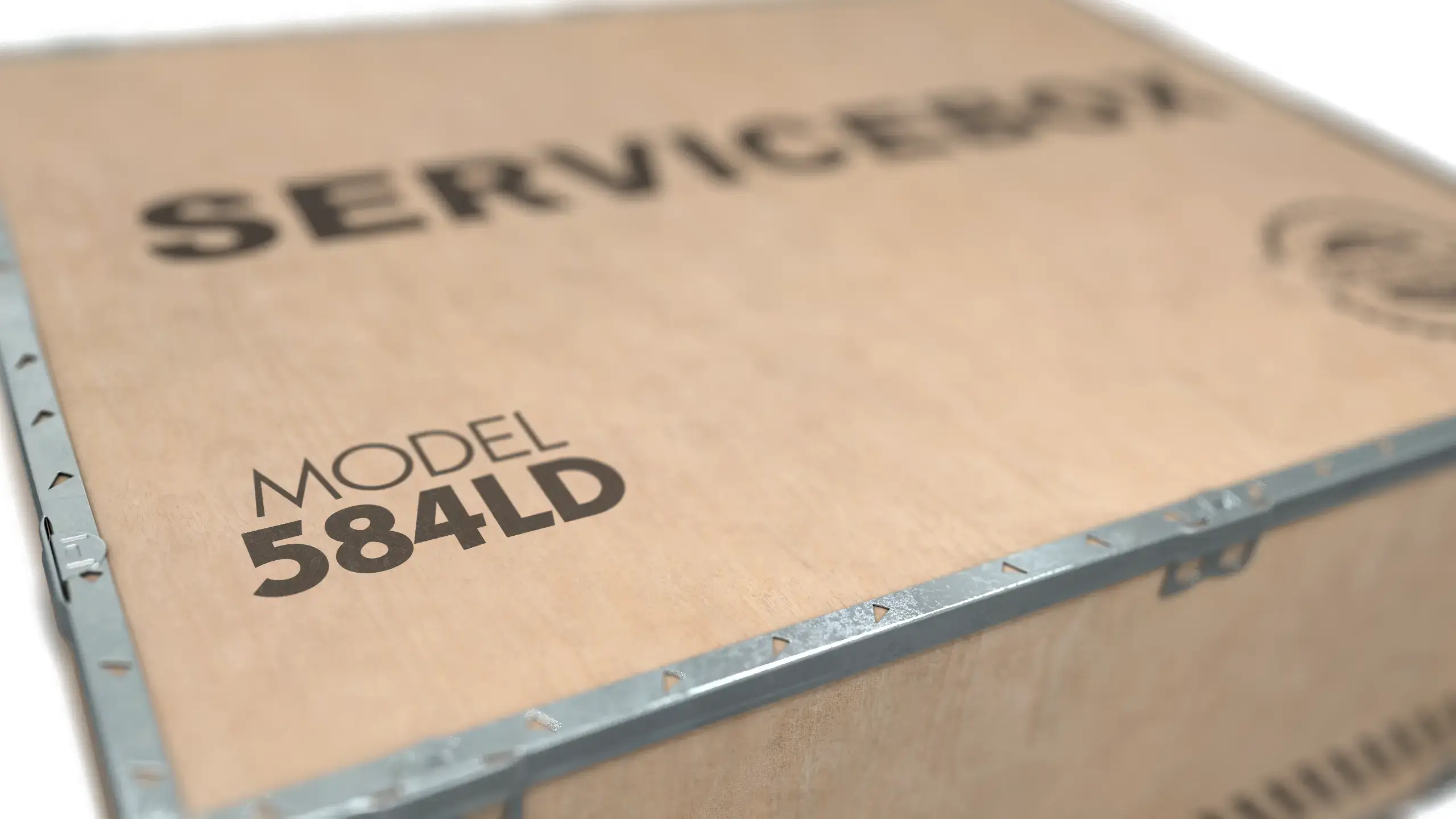

Servicebox 584LD

Servicebox for spreader model 584LD

Product information

Our service boxes contain all the genuine parts we consider needed to be replaced at service, together with a service manual. Servicebox 584LD is valid for all standard models delivered from the launch in year 2011.

Weight & Dimensions

Box weight (MPS)	60 kg
Box weight (PPS)	70 kg
Box dimensions	80x60x45 cm

Hook Assembly

2x Hook
2x Pin
2x Lock washer
2x Nut
4x Bushing

Wear Pads & Shims

10x Wear pad - Endbeam
24x Wear pad - Mainframe
6x Wear pad - Carriage
10x Shims - Mainframe
8x Shims - Endbeam

Flex Track Chain

2x Flex track chain

Additional Items

2x Proximity switch
1x Seal kit - Sideshift cylinder
1x Seal kit - Extension cylinder
1x Seal kit - Side clamp cylinder

PPS (option)

2x Wear pads (frame)
2x Shims 1 mm (frame)
2x Shims 2 mm (frame)
2x Wear pads (carriage)
2x Shims 1 mm (carriage)
2x Shims 2 mm (carriage)
6x Bolts (carriage)
6x Lock washer (carriage)
1x Seal kit - Tilt cylinder

DISCLAIMER
All specifications are subject to change without notice. A list of options enables you to adapt the product more precisely to your needs and further information is available on request.
